Quick Details
- Place of Origin: Shandong, China (Mainland)
- Brand Name: FUMAN
- Model Number: HT21-4199
- Condition: New
- Moving Type: Crawler Excavator
- Operating Weight: 1910/1960kg
- Bucket capacity: 0.06m³
- Maximum Digging Height: 3457mm
- Maximum Digging Depth: 2200mm
- Machine Weight: 1910/1960kg
- Max Digging Radius: 3925mm
- Rated Speed: 9km/h
- Certification: CE ISO
- After-sales Service Provided: Engineers available to service machinery overseas
- Keywords: 2ton excavator
- Type: Hydraulic Wheel Excavator
- Working weight: 1910/1960kg
- Bucket volume: 0.06m
- Engine Model: YUCHAI
- Dimension: 3634*1100/1300*2400(L*W*H)
- Warranty: 12months
- Color: Yellow, orange
- Origin: China Mailand
Packaging & Delivery
| Packaging Details: | 1, By container
2, By ro-ro ship 3, By cargo ship |
|---|---|
| Delivery Detail: | Shipped in 20 days after payment |
trust worthy mini 1.8ton bucket excavator
Product details
| Keywords | 2ton excavator |
| Type | Hydraulic Wheel Excavator |
| Working weight | 1910/1960kg |
| Bucket volume | 0.06m |
| Engine Model | YUCHAI |
| Dimension | 3634*1100/1300*2400(L*W*H) |
| Warranty | 12months |
| Color | Yellow, orange |
| Origin | China Mailand |
Features:
Mini Excavator HT21 | ||
Item | Technical parameters | |
1 | Overall work weight | 1940kg |
2 | Standard Bucket | 0.06 m³ |
3 | Engine power/Rotate | 14.7/2350 kw/r/min |
4 | Engine type | LL380B-180 |
5 | Swing speed | 11 r/min |
6 | Travel speed | 3 km/h |
7 | Gradeability | 50% |
8 | Max.arm digging force | 9 KN |
9 | Max. bucket teeth digging force | 12 KN |
10 | Ground pressure | 26 kPa |
11 | Hydraulic system type | Plunger variable pump system |
12 | The system pressure | 20 MPa |
13 | Main pump delivery | 2*12.1+3.5 mL/r |
14 | Work pressure device | 20 MPa |
15 | Walking device Pressure | 20 MPa |
16 | Rotate Pressure | 12.5 MPa |
17 | Pilot pressure | 3.5 MPa |
18 | Rotary motor displacement | 24.5 mL/r |
19 | Walking motor displacement | 16 mL/r |
20 | Crawler Type | Rubber belt track |
21 | Overall length (for transportation) | 3635mm |
22 | Overall width | 1400mm |
23 | Overall height | 2320mm |
24 | Track gauge | 1150mm |
25 | Track width | 250mm |
26 | Bulldozing plate width | 1400mm |
27 | Total track length | 1632mm |
28 | The back-end radius of gyration | 640mm |
29 | Max. digging height | 3421mm |
30 | Max. dumping height | 2358mm |
31 | Max. digging depth | 2159mm |
32 | Max. digging radius | 3908mm |
33 | Bulldozing plate distance to ascend(Above) | 200mm |
34 | Bulldozing plate distance to ascend(Below) | 180mm |
Quality assurance:
Warranty period is one year or against Bill of Lading

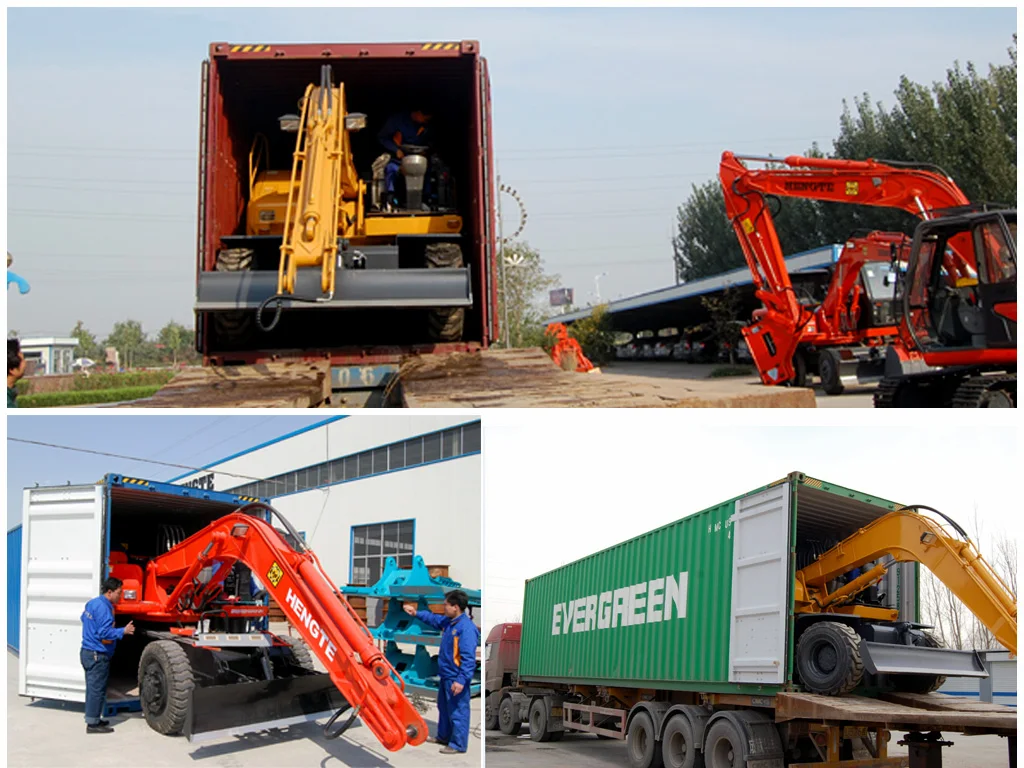

PACKAGE:
Two units HT21 could put into one 20’GP container
DELIVERY TIME:
20-30 days after deposit
1.Reply your inquiry in 24 hours.
2.Experienced staffs answer all your questions professionally.
3.Provide customized design service.
4.Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to your distributor.
6.Warranty period is one year or against Bill of Lading.
